FNPT Union Polypropylene, Cast Bronze and 300L Stainless Steel 1 in. 150 psi BFP Vacuum Breaker

Zurn Wilkins

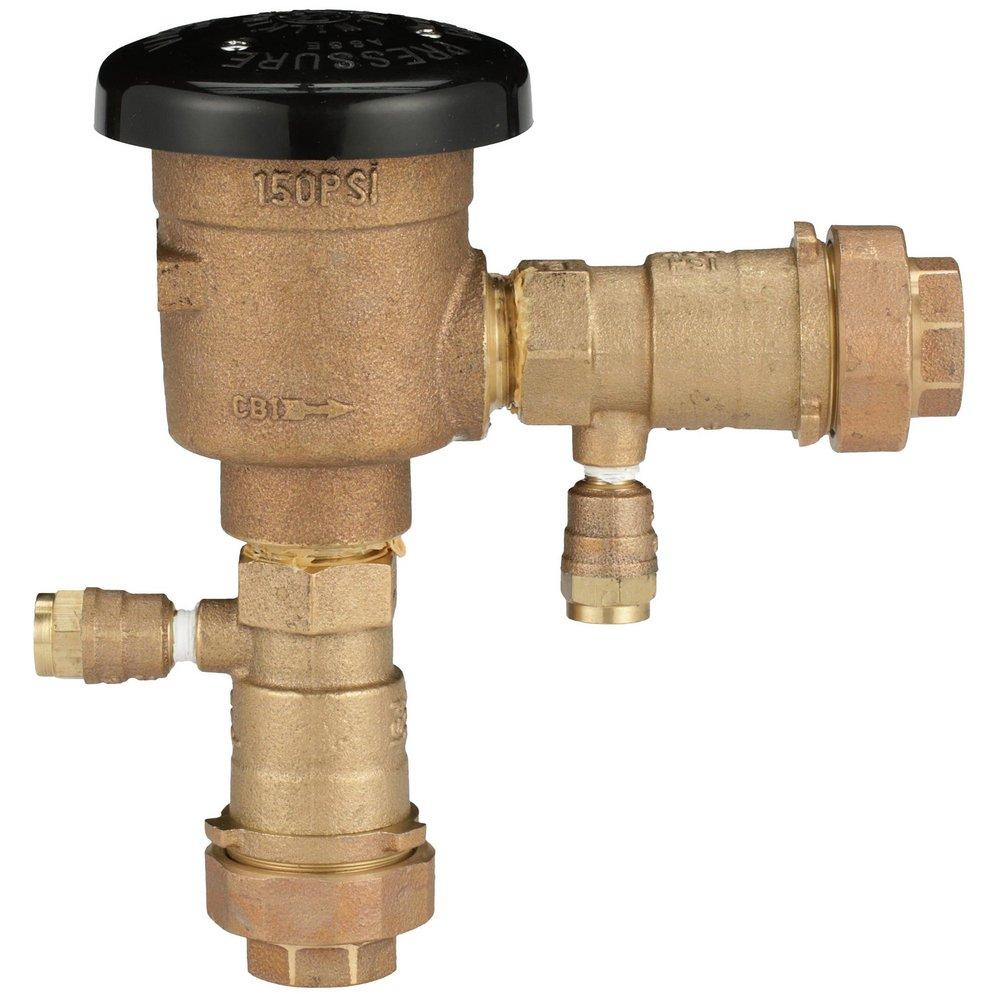

Model 720A FNPT Union Polypropylene, Cast Bronze and 300L Stainless Steel 1 in. 150 psi BFP Vacuum Breaker

Brand image
Zurn Wilkins

Model 720A FNPT Union Polypropylene, Cast Bronze and 300L Stainless Steel 1 in. 150 psi BFP Vacuum Breaker

  • Part #W720AUG
  • Item #4350378
  • Manufacturer Part #1-720AU
3.7 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 1 CA: 1
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Product Details

  • Test Cocks on center line of valve allow for installation versatility
  • Consistent, reliable performance provides world class backsiphonage protection
  • Serial number visible in any installed orientation reduces labor time
  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California
  • IAPMO® Listed
  • CSA® Certified
  • ASSE® Listed
  • Construction offers corrosion-resistance, strength, and winterization protection

Recommended Accessories


Specifications

ANSI:
ANSI B1.20.1
ASSE Standards:
ASSE 1020
Application:
Irrigation
CSA Certified:
CSA
Collection:
Model 720A
Color Finish Category:
Bronze Tones
Color Finish Name:
Cast Bronze
End Connection 1:
FNPT
End Connection 2:
FNPT
End Connections:
FNPT
Faucet Mount:
Vertical Mount
Fitting Size 1:
1 in
Fitting Size 2:
1 in
Fitting Sizes:
1 in
Height:
7 in
IAPMO Listed -:
Yes
Installation Type:
Vertical Mount
Lead Law Compliance Level:
Not Compliant, Approved for Non-Potable Water Applications
Length:
11-1/10 in
Material:
Bronze, Rubber, Plastic, Stainless Steel
Material Type:
300L, Polypropylene, Silicone
Maximum Temperature:
110
Minimum Temperature:
33
NSF Certified:
No
Origin:
Domestic
Overall Depth:
11-1/10 in
Overall Height:
7 in
Overall Length:
11-1/10 in
Overall Width:
7-1/2 in
Pressure - Maximum:
150 psi
Recommended Valve Application:
Water
Size:
1 in
UL Listed:
No
Valve Body Material:
Bronze
Valve Body Style:
Inline
Valve Seat Material:
Bronze
Valve Size:
1 in
Waterworks Application:
Irrigation
Weight:
7.5 lb
Width:
7-1/2 in
cUPC Certified:
No
