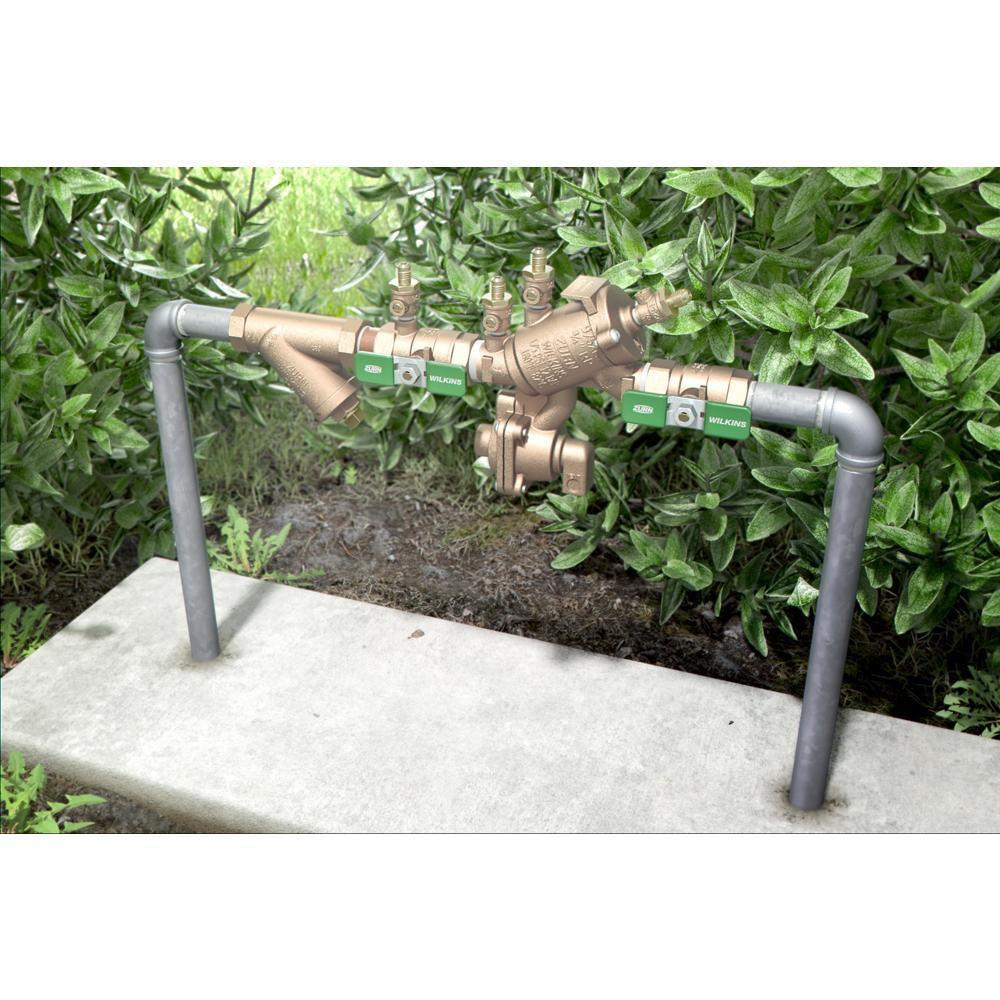

1 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves
Zurn Wilkins
Model 975XL 1 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves
Package Quantity Info:
Each: 1 Inner Pack: 1Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Zurn Wilkins
Model 975XL
1 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves
1-975XL3
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- For piping with 1 in. inner diameter
- Comes with full port QT ball valves with stainless steel handles
- Compact and shortest bronze small backflow valve on the market allowing for installation versatility
- All-bronze body ensures durability against the elements, with a Noryl®* check body and stainless-steel fasteners to resist corrosion over time.
- EZSWAP® modular check with top access speeds up repairs and replacements
- Test ports located on valve’s centerline make install and testing easy
- Interlocking connected checks provide ¼ turn to access and disassemble.
- Low-cost repair kits extend the lifespan at a significantly lower cost
- Lead Free* (0.25% max. weighted average lead content)
- ASSE Listed, UPC® Listed, Meets NSF/ANSI/CAN 61 & 372 requirements; Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California; Safe Drinking Water Act Compliant
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Height
6-15/16 in
Length
11-13/16 in
Pressure - Maximum
350 psi
Valve Size
1 in
Weight
14 lb
Width
3-15/32 in
Characteristics & Features
Collection
Model 975XL
Material
Bronze, Plastic
Material Type
Noryl®
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
Bronze
Valve Body Style
Inline
Valve Seat Material
Noryl
Valve Type
Reduced Pressure Principle Assembly
Electrical & Operational Information
Minimum Temperature
33
Warranty & Product Information
ANSI
ANSI B1.20.1
ASSE Standards
ASSE 1013
ASTM
ASTM B-584
AWWA
AWWA C-511
CSA Certified
CSA B64.4
FM Approved
No
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
Recommended Valve Application
Potable Water, Water
UL Listed
Yes
UPC
612052317359
