Furnace pressure switch troubleshooting guide
As an HVAC professional, arriving at a no-heat call on a freezing night means you must quickly and accurately diagnose complex safety systems. The pressure switch is often the primary suspect when a gas furnace locks out before ignition, but a stuck-open fault code does not automatically mean the switch is defective. Frequently, the switch is simply doing its job by detecting a legitimate venting or draft issue that could otherwise expose your customers to dangerous carbon monoxide.
Discover how to efficiently troubleshoot these safety systems by differentiating between legitimate exhaust problems and mechanical switch failures, helping you make the right diagnostic and purchasing decisions to keep your customers safe and warm.
Furnace pressure switch overview
A furnace pressure switch is a vital safety mechanism designed to prove that the draft inducer motor is moving enough air to safely vent combustion gases outdoors. It acts as a gatekeeper in the furnace’s sequence of operations. When the thermostat calls for heat, the control board first energizes the inducer motor. As the motor spins up, it creates a negative pressure inside the draft inducer housing or collector box.
The pressure switch is connected to this chamber via a small rubber hose. Inside a standard mechanical switch is a flexible diaphragm attached to a microswitch. When the vacuum reaches the manufacturer's specified set point, often measured in inches of water column, such as -0.10" to -0.50" WC, the diaphragm pulls inward, closing the electrical contacts.
Only after this circuit is closed will the control board move to the next step, which typically involves checking the HVAC limit switches and energizing the hot surface ignitor. If the necessary draft is not proven, the system will lock out to prevent hazardous gas buildup.
High altitude considerations
When servicing equipment in high-altitude environments, you need to account for changes in air density. At higher elevations, the air is thinner, so the inducer motor moves less air mass even when spinning at full speed. This decrease in volumetric pressure can cause a standard factory pressure switch to fail to close or to trip prematurely.
For installations above 2,000 to 4,000 feet, manufacturers typically require a high-altitude conversion kit. These kits often include a different pressure switch calibrated to a lower negative pressure threshold, along with smaller burner orifices to derate the gas input.
Testing a furnace pressure switch
Thorough testing with electrical meters and multimeters prevents unnecessary replacement of functioning parts. Never bypass a pressure switch to force a furnace to run, as this defeats a critical life-safety device. Instead, use a systematic approach utilizing diagnostic tools.
Visual inspection and preparation
Before reaching for your diagnostic tools, perform a thorough visual inspection with the power turned off.
Check the rubber tubing connecting the switch to the draft inducer or collector box.
Look for obvious cracks, kinks, or signs of dry rot.
Ensure the hose fits snugly on both barbed fittings. A loose or degraded hose will leak air, preventing the switch from sensing the vacuum created by the inducer motor.
Diagnostic testing procedures
Once the visual check is complete, restore power and initiate a call for heat to observe the system's behavior.
Verify inducer operation: Listen to the inducer motor. If it does not start, or if it hums and struggles to turn, the problem lies with the motor, capacitor, or control board, not the pressure switch.
Electrical testing: If the inducer runs normally, use your multimeter to check for 24V across the pressure switch terminals. Place one meter lead on a proper ground and the other on the incoming terminal from the control board. You should read 24V. Next, move the lead to the outgoing terminal. If you read 24V on the incoming side but 0V on the outgoing side while the inducer is running at full speed, the switch is open.

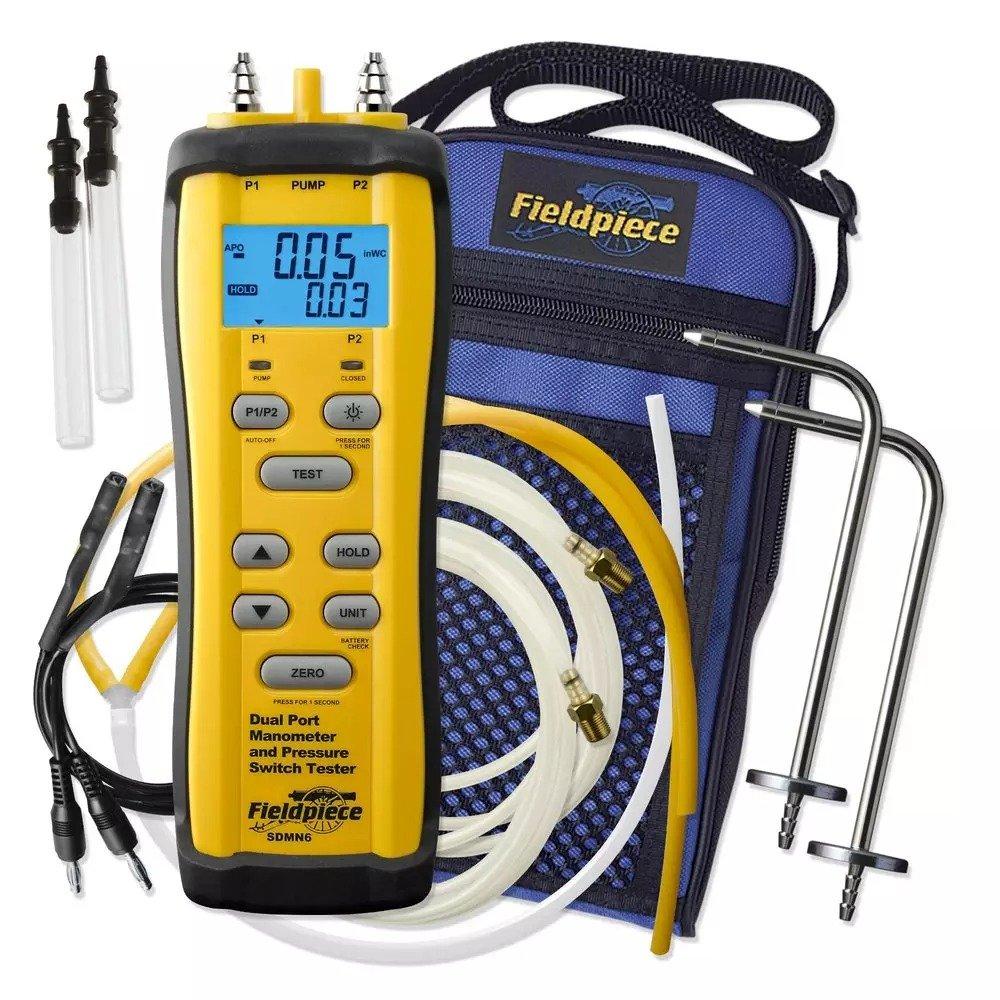

Draft testing: To determine if the open switch is due to a lack of draft or a failed internal mechanism, you must measure the actual vacuum using a manometer. Disconnect the hose from the pressure switch and connect it to your manometer. When the inducer starts, note the reading in inches of water column. Compare this reading to the required set point printed on the pressure switch label.
If the manometer reads a vacuum greater than the switch's required set point but the switch remains open, the switch itself has failed. If the manometer reading falls short of the set point, you have a legitimate exhaust or draft issue.
Legitimate exhaust issues
A pressure switch that remains open due to inadequate draft is functioning exactly as engineered. Replacing the switch in these scenarios will not resolve the lockout. You must locate and clear the restriction in the venting or drainage system.
Blocked flue and intake pipes
High-efficiency condensing furnaces utilize PVC pipes for fresh air intake and exhaust. These exterior terminations are highly susceptible to blockages. Common culprits include bird or wasp nests, leaves, rodent intrusion, and heavy snow accumulation. In colder climates, moisture from the exhaust gas can freeze at the termination point, creating an ice blockage that chokes off the airflow. Always inspect the exterior vents and clear any debris.
Clogged condensate systems
One of the most frequent causes of pressure switch faults is a backed-up condensate drain. Because condensing furnaces extract heat to the point where exhaust gases turn into liquid water, they must continuously drain this acidic moisture. If the internal condensate trap, the drain hose, or the condensate pump becomes clogged with algae or debris, water will back up into the collector box and the draft inducer housing.
When water accumulates, it restricts the inducer's ability to pull air and can even travel up the pressure switch tubing. If you pull the hose off the switch and water drips out, you have a condensate drainage issue. Flush the trap and clear the drain lines. Once the water flows freely, the draft will be restored.
Inducer motor and tubing failures
An aging inducer motor may still spin but fail to reach its rated RPM due to worn bearings or a failing motor winding. A weak motor simply cannot generate the necessary static pressure to close the switch. Additionally, check the port on the collector box where the hose attaches. This small port often gets clogged with rust, scale, or a buildup of combustion byproducts. Use a paperclip or a small wire drill bit to carefully clear the port, taking care not to damage the internal housing.
Negative air pressure
Modern energy codes have led to increasingly tight building envelopes. While great for efficiency, a tightly sealed home can create unintended negative air pressure. When powerful exhaust appliances are running concurrently, they forcefully remove air from the living space. If there is insufficient makeup air, the house depressurizes.
For furnaces that draw combustion air from the surrounding indoor space rather than through a dedicated PVC intake pipe, this negative pressure directly competes with the draft inducer motor. The inducer may fail to overcome the house's vacuum, causing backdrafts or preventing the pressure switch from proving sufficient draft, which results in a lockout. If you encounter a sporadic pressure switch issue, test the system with all other household exhaust fans running. Resolving this often requires advising customers on the installation of a dedicated fresh air intake or makeup air damper to equalize indoor pressure.

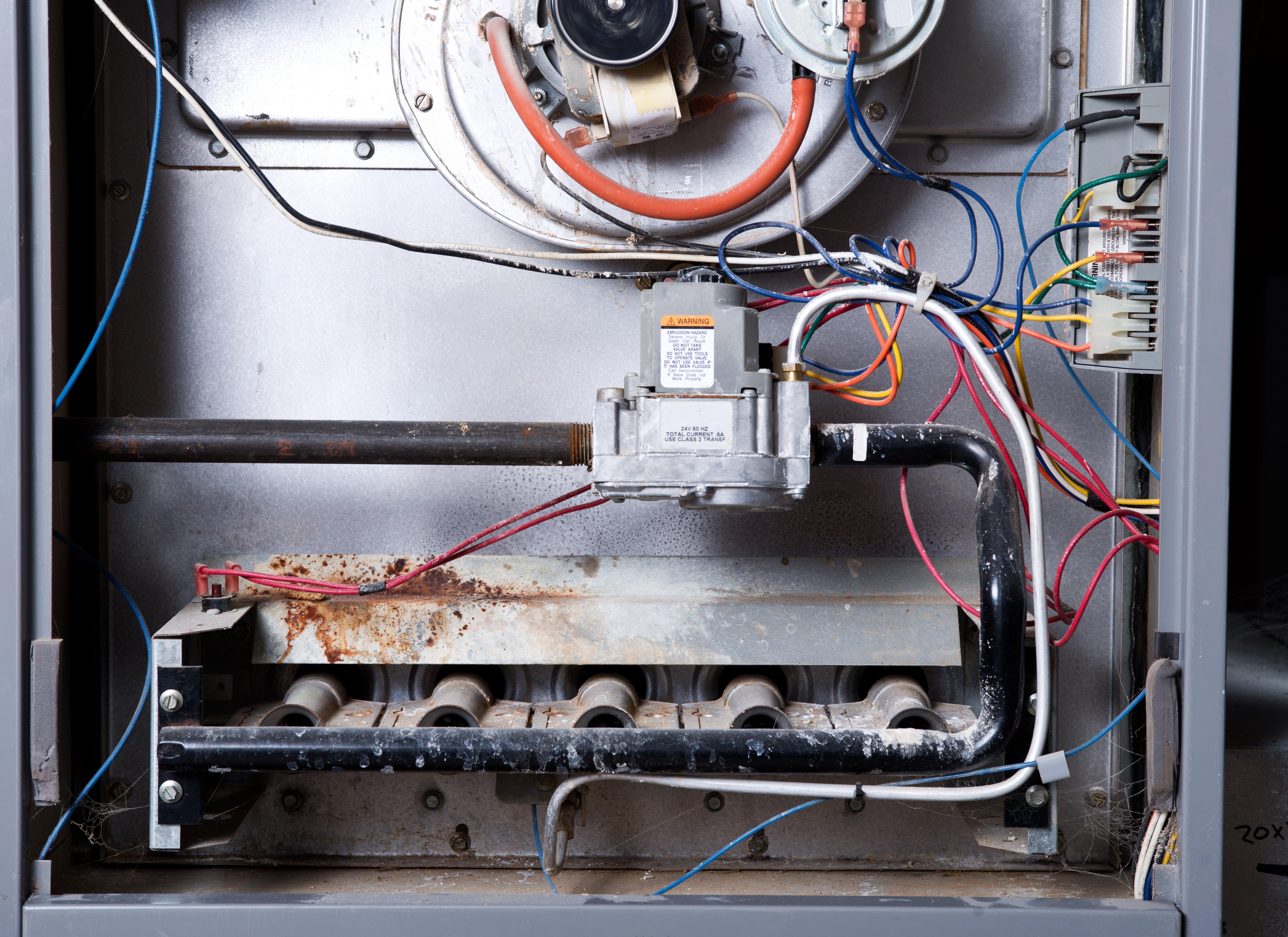

Common furnace pressure switch problems
If your manometer confirms that the draft is adequate but the switch still fails to close, or if it closes erratically, the component itself has failed and requires replacement.
Mechanical failure and ruptured diaphragms
Mechanical pressure switches have a finite lifespan. Over years of cyclic heating, the internal rubber diaphragm can become stiff, brittle, or completely ruptured. When a diaphragm ruptures, it can no longer hold the vacuum required to pull the electrical contacts together. You can sometimes diagnose a ruptured or sticking diaphragm by listening closely to the switch as the inducer starts. A soft fluttering, clicking, or flapping noise often indicates that the diaphragm is struggling or torn.
Furthermore, the electrical microswitch contacts inside the housing can pit and corrode over time due to the minor electrical arcing that occurs every time the circuit closes. This corrosion creates high electrical resistance, preventing the 24V signal from reaching the control board even when the diaphragm operates correctly.
Exhaust issue vs. pressure switch failure
| Diagnostic Observation | Probable Root Cause |
|---|---|
| Manometer reads adequate draft, switch reads open | Switch failure |
| Flapping sound heard directly from the switch body | Switch failure |
| Manometer reads poor draft, inducer runs fine | Exhaust issue |
| Water present inside the pressure switch tubing | Exhaust issue |
| Inducer motor hums but fails to spin up to speed | Exhaust issue |
Replacing vs. fixing a furnace pressure switch
A furnace pressure switch is a sealed, factory-calibrated safety component. Because of this, "fixing" or attempting to repair the internal mechanisms of a faulty switch is not a safe or viable option. When the internal diaphragm ruptures, stiffens, or the microswitch contacts fail, the entire unit must be replaced.
Attempting to open, tape, or bypass a broken switch puts your customers at severe risk of carbon monoxide exposure and will void manufacturer warranties. Your primary decision on the job site is not whether to fix it, but rather which replacement part to select to get the system running safely and efficiently again.
The OEM vs. ARP debate
When a pressure switch fails, contractors often face the OEM vs. ARP debate. Original Equipment Manufacturer (OEM) parts are exact replicas of the factory-installed components, guaranteeing flawless integration, matching mounting brackets, and identical safety ratings. Aftermarket Replacement Parts (ARP), or universal switches, offer adjustability and can be a cost-effective, versatile solution to keep on your truck.
Universal switches often feature adjustable set points and a variety of mounting hardware. However, dialing in the exact required water column setting requires extreme precision with a manometer to ensure safety compliance. Using a universal switch that is incorrectly calibrated can lead to a dangerous operating environment. Because safety is paramount, many contractors prefer to install the exact OEM switch whenever possible.
