Furnace flame sensor troubleshooting & replacement guide
Ensuring your customers have reliable heating is a top priority — especially during the peak of winter. When a gas furnace fails to stay lit, the issue often points directly to a malfunctioning furnace flame sensor. Understanding how to find the flame sensor on a furnace, correctly diagnose the issue, and perform a proper furnace flame sensor replacement or repair is critical to minimizing downtime and preventing unnecessary callbacks.
Flame sensor overview
A furnace flame rod acts as a critical safety device in modern gas heating systems, replacing the older standing pilot light and thermocouple designs. Located directly in the path of the burner assembly, the sensor is designed to detect the presence of a flame immediately after the gas valve opens and the igniter does its job. If no flame is detected within a few seconds, the furnace control board swiftly shuts off the gas supply. This prevents a dangerous buildup of uncombusted gas in the home or commercial building.
What is flame rectification?
To understand how a flame sensing rod works, it is important to grasp the underlying electrical theory. Flame rectification is the process where an alternating current (AC) voltage is applied to the sensor by the control board, and the flame itself acts as a conductor that converts — or rectifies — that AC signal into a direct current (DC).
The intense heat and ionized gases within the combustion flame alter the electrical current, converting the AC signal into a very small, measurable direct current (DC) microamp signal. This DC signal travels through the flame, grounds to the burner assembly, and completes the circuit back to the control board, keeping the gas valve open.
A good flame sensor reading typically falls between 2.0 and 10.0 DC microamps, depending on the furnace manufacturer. A reading below 1.5 microamps usually indicates a problem, prompting the control board to shut down the heating cycle.
Causes of a bad flame sensor
For your customers, a lack of heat is an emergency, and understanding these common failure points helps you resolve the issue efficiently:
- Carbon and soot buildup: Over time, the normal combustion process naturally deposits a layer of carbon on the metallic sensor rod. This buildup acts as an electrical insulator, weakening the microamp signal until it drops below the control board's minimum safety threshold.
- Silica coating: If the furnace operates in an environment with certain airborne chemicals, or if the rod was previously cleaned with standard silica-based sandpaper, a microscopic glass-like coating can bake onto the rod. This coating completely blocks the electrical current and cannot be easily removed, requiring a replacement.
- Cracked ceramic insulator: The white ceramic base of the sensor is exceptionally fragile. Bending the rod to force it into place, dropping the component, or over-tightening the mounting screw can cause hairline cracks in the ceramic. When this happens, the electrical signal grounds out to the furnace chassis before it ever reaches the flame.
- Age and thermal fatigue: The constant cycle of extreme heat and cooling takes a toll on the metal alloy of the sensor rod. Over years of continuous use, the metal can naturally degrade, warp, or lose its conductive properties.
Diagnosing symptoms of a bad flame sensor
Identifying the symptoms of a bad flame sensor is the first step in efficient troubleshooting. Often, the furnace will ignite, run for three to five seconds, and then promptly shut down. This short-cycling is a classic sign of signal loss.
Intermittent failures often occur when a rod is only partially coated with carbon or silica, leading to fluctuating microamp readings that sometimes meet the minimum threshold and sometimes drop below it.
Another cause for erratic operation could be a reverse polarity furnace issue. When a furnace has reversed polarity, the grounding reference required for flame rectification is disrupted. Always use a high-quality electrical meter to verify proper grounding, neutral integrity, and correct polarity before condemning the sensor itself.
Normal vs. faulty flame sensor microamp readings
| Diagnosis | Microamp reading | Typical symptoms | Recommended action |
|---|---|---|---|
| Normal operation | 2.0 to 10.0 DC microamps | Furnace ignites and runs continuously | No action required |
| Intermittent failure | 1.0 to 2.0 DC microamps | System short-cycles sporadically | Inspect the rod, check grounding, and clean |
| Total failure | Below 1.0 DC microamps | Furnace shuts down 3-4 seconds after ignition | Verify polarity; replace sensor if cracked or severely worn |
Flame sensor cleaning, repair, and replacement
When cleaning the flame sensor on a furnace, your technique and materials matter immensely. Over time, a buildup of oxidation, carbon, or silica can insulate the rod, preventing the microamp signal from traveling effectively through the flame.
To clean it, use a specialized flame detector test kit, or gently rub the metal rod with a piece of fine steel wool or a synthetic Scotch-Brite pad. You must never use sandpaper for furnace flame sensor cleaning. The grit on standard sandpaper contains silica, which can melt onto the sensor during operation and create a microscopic glass coating that blocks the electrical signal entirely.
If cleaning does not restore the signal to a robust level, or if the ceramic insulator at the base is cracked, a complete furnace flame sensor replacement is necessary. When removing the old component, be careful not to damage the mounting bracket.
Frequently Asked Questions
How does a flame sensor work?
A flame sensor works by utilizing flame rectification. An AC voltage is sent to the sensor from the control board, and the ionized gas flame rectifies this into a DC microamp signal. If the control board detects this DC signal traveling through the flame and back through the ground, it confirms the flame is present and safely keeps the gas valve open.
Are furnace flame sensors universal?
While exact OEM replacements are often recommended, universal flame sensors are a viable and common option in the field. Trusted manufacturers offer high-quality aftermarket replacements designed to fit a wide range of units. However, when choosing between OEM and aftermarket parts, safety is the top priority.
Tyler Keraitis, Ferguson Dealer Development, explains, "Since it is a combustion appliance, you do always want to err on the side of caution when you use universal parts because of the risk of a fire if there is a failure. You should always replace a flame sensor like for like, and you shouldn't be making major adjustments to get it to work."
Ultimately, you can find an aftermarket flame sensor that works perfectly, as long as it naturally matches the original component's rod length, angle, and mounting bracket without forcing it to fit.
How do you find a flame sensor on a furnace?

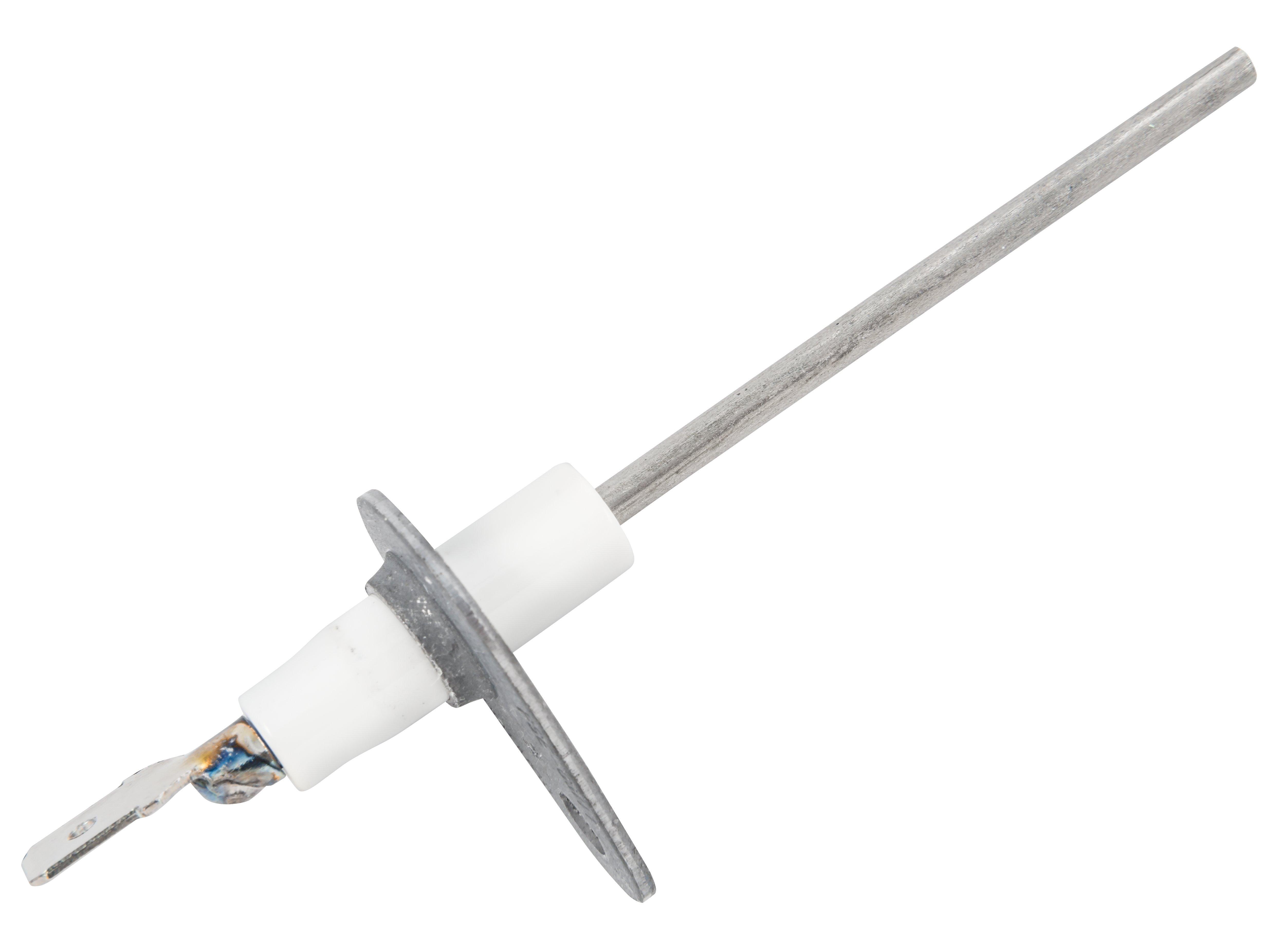

To find the flame sensor on a furnace, turn off the power and remove the front access panel. Locate the burner assembly. The sensor is typically a thin, metallic rod with a white ceramic base and a single wire attached to it, positioned directly in the path of the flame on the opposite side of the igniter.
How many microamps should a flame sensor read?
A healthy and good flame sensor reading is typically between 2.0 and 10.0 microamps DC. Anything below 1.5 microamps generally indicates a dirty sensor, a failing control board, or a poor ground connection that needs to be addressed.
How to check a flame sensor with a multimeter?
To check a flame sensor with a multimeter, set your meter to read DC microamps (µA). Disconnect the single wire leading to the sensor. Connect one meter lead to the wire and the other lead to the sensor's terminal, effectively placing the meter in series with the circuit. When the furnace fires, observe the microamp reading on your display.
Can a flame sensor work intermittently?
Yes, a dirty sensor, a weak ground, or loose wiring can cause a flame sensor to work intermittently. This often leads to frustrating short-cycling, inconsistent heating, and unexpected emergency callbacks from your customers.
Can you bend a flame sensor rod?
No, you should never bend a flame sensor rod. Bending it can easily crack the internal ceramic insulator, which will ground out the electrical signal and cause an immediate safety lockout. If the shape is incorrect, replace it with the proper part. You should always source an exact OEM replacement part or an approved universal substitute that matches the manufacturer’s exact specifications.
What causes reverse polarity on a furnace?
Reverse polarity occurs when the incoming hot (line) voltage wire and the neutral wire are swapped, typically at the furnace junction box or the main electrical panel. This disrupts the grounding reference required for flame rectification, causing the control board to fail to recognize the flame entirely.
