T&S Brass

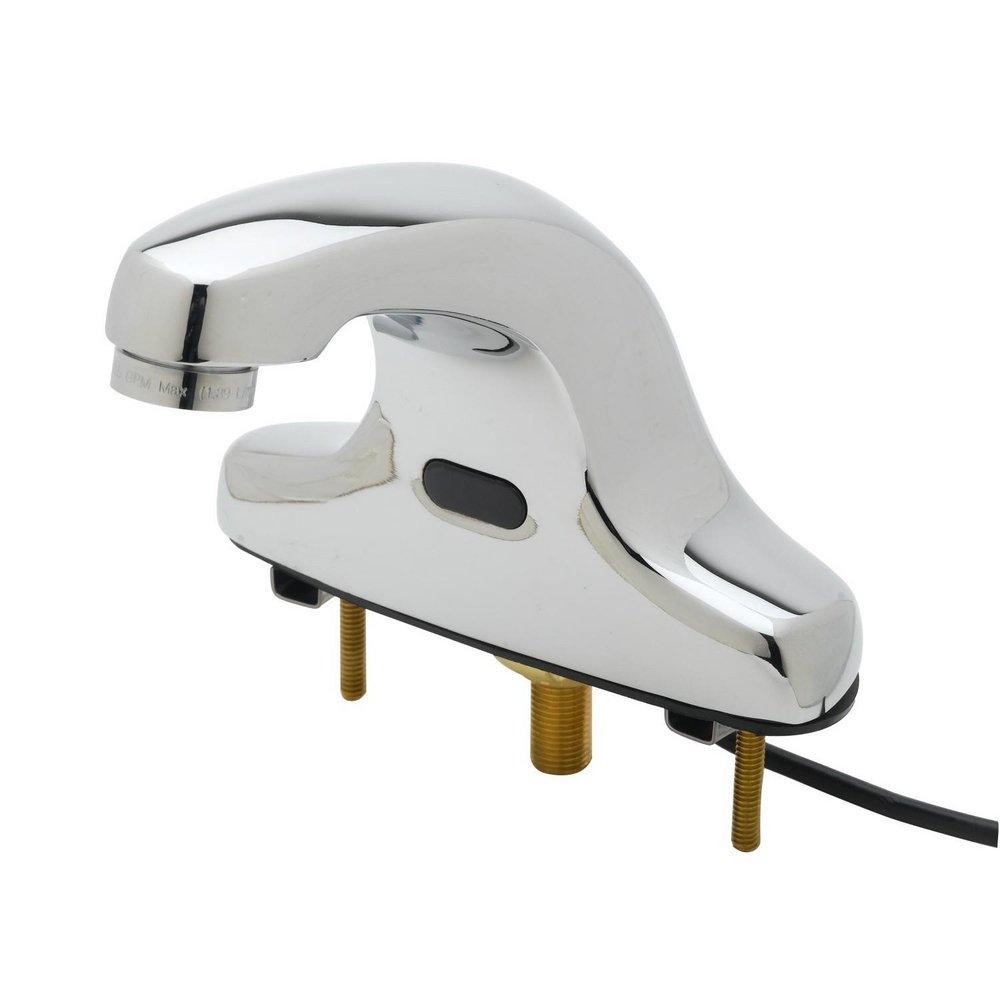

T&S Brass Polished Chrome *CVR* CCY LF 0.5 GPM EQUIP 5EF-2D-D

T&S Brass Polished Chrome *CVR* CCY LF 0.5 GPM EQUIP 5EF-2D-D

T&S Brass

Fast #
Part #T5EF2DDSVF05
Item #5086089
Manufacturer Part #5EF-2D-DS-VF05

Type: T5EF2DDSVF05

Unavailable

How to get it:

Pick Up Not Available

0 in Hilliard, OH

0 nearby
Shipping Not Available
Not available at this time

Product Details

4" deck mount faucet w/ polished chrome plated brass body with integral spout
0.5 GPM vandal resistant non-aerated spray device, Series 9 (B-0199-09-N05)
Water resistant control module
Plug in AC transformer or (4) AA battery (DC) power options
Temperature control mixing valve w/ check valves
18" flexible stainless steel supply hoses w/ 3/8" compression connections
Low battery LED indicator light
Material: Polished chrome plated brass body

Lead Law Compliant
ADA Compliant

Documents

SPECIFICATION

INSTALLATION

WARRANTY

Specifications

ADA Compliant:: Yes

ANSI:: ANSI 61, ANSI 372

ASME:: ASME A112.18.1

Application:: Commercial

CEC Compliant:: For Sale in CA

CSA Certified:: CSA B125.1

Collection:: Equip

Color Finish Category:: Chromes

Color Finish Name:: Polished Chrome

Faucet Center Size:: 4 in

Faucet Mount:: Deck Mount

Faucet Type:: Electronic

Flow Rate:: 0.50 gpm

IAPMO Listed:: No

Lead Law Compliance Level:: Lead Law Compliant and Certified

Lead Law Compliant:: Yes

NSF:: NSF 372, NSF 61

NSF Certified:: Yes

Origin:: Global

Proposition 65:: WARNING This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Spout Type:: Cast

UL Listed:: UL 1951

UPC:: 671262742467

WaterSense Labeled:: No

Customers Also Bought

1–6 of 18 items

21-15/16 in. Wall Mount Oval Vitreous China Bathroom Sink in White

KOHLER Brenham™

21-15/16 in. Wall Mount Oval Vitreous China Bathroom Sink in White

Part #K1997-1NR-0

Item #3883754

EACH

1/2 in. Press 200 psi 316 Stainless Steel Tee

Viega MegaPress®

1/2 in. Press 200 psi 316 Stainless Steel Tee

Part #V90105

Item #7252922

EACH

Single Lever Faucet, 9" Spout, Swivel Base, 10" Deckplate, VR 0.5 GPM Spray Device

Single Lever Faucet, 9" Spout, Swivel Base, 10" Deckplate, VR 0.5 GPM Spray Device

Part #TB2731VF05

Item #7174798

EACH

48 x 23 in. Faux Wood and Plastic Window Covering in White

Lotus & Windoware, Inc.

48 x 23 in. Faux Wood and Plastic Window Covering in White

Part #LMLX2348WH

Item #10172165

EACH

5/8 x 3/8 x 3/8 in. OD Tube Lever Straight Supply Stop Valve in Chrome Plated

Legend Valve & Fitting T-598NL

5/8 x 3/8 x 3/8 in. OD Tube Lever Straight Supply Stop Valve in Chrome Plated

Part #L114731NL

Item #7339965

EACH

1 x 3 - 4 in. 300# Steel Domestic Threadolet

1 x 3 - 4 in. 300# Steel Domestic Threadolet

Part #A0363190281

Item #461071

EACH

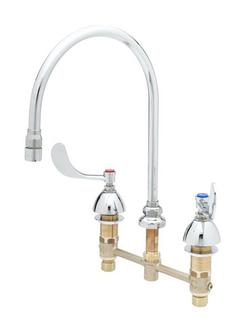

Two Handle Widespread Bathroom Sink Faucet in Chrome Plated

Two Handle Widespread Bathroom Sink Faucet in Chrome Plated

Part #TB2862

Item #1897738

EACH

Single Handle Lever Deck Mount Service Faucet in Chrome Plated

Chicago Faucets 410 Series

Single Handle Lever Deck Mount Service Faucet in Chrome Plated

Part #C410E2805ABCP

Item #7677872

EACH

1/2 in. Forged Brass Full Port FIPS x FIPS x GHT 600# Ball Valve

Webstone a brand of NIBCO 4061 Series

1/2 in. Forged Brass Full Port FIPS x FIPS x GHT 600# Ball Valve

Part #WH40612W

Item #7340142

EACH

Two Handle Centerset Bathroom Sink Faucet in Chrome Plated

Two Handle Centerset Bathroom Sink Faucet in Chrome Plated

Part #TB089201

Item #438506

EACH

Single Handle Monoblock Bathroom Sink Faucet in Brushed Nickel

Hansgrohe Logis

Single Handle Monoblock Bathroom Sink Faucet in Brushed Nickel

Part #H71070821

Item #5172748

EACH

Service Sink Faucet, Polished Chrome Finish, Integral Stops, Wall Brace, Garden Hose Outle

Service Sink Faucet, Polished Chrome Finish, Integral Stops, Wall Brace, Garden Hose Outle

Part #TB2345

Item #1602418

EACH

23-1/4 x 39-3/8 in. Surface Mount Medicine Cabinet in Mirror

Robern Vitality™

23-1/4 x 39-3/8 in. Surface Mount Medicine Cabinet in Mirror

Part #RYC2440D4P1R3

Item #8893745

EACH

3/4 in. Brass Full Port Press 200# Ball Valve

Milwaukee Valve UPBA-480 Series

3/4 in. Brass Full Port Press 200# Ball Valve

Part #MUPBA480SF

Item #4845385

EACH

1.5 x 2-1/2 in. FNPT 300# Domestic Carbon Steel Threadolet

1.5 x 2-1/2 in. FNPT 300# Domestic Carbon Steel Threadolet

Part #A0363190471

Item #461070

EACH

3/4 in. Imported Copper 45° Elbow (7/8 in. OD)

3/4 in. Imported Copper 45° Elbow (7/8 in. OD)

Part #GC4F

Item #7877502

EACH

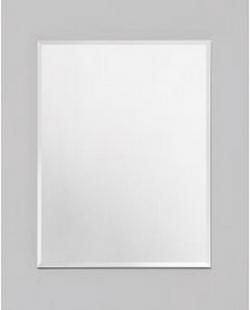

26-1/8 in. Surface Mount and Recessed Mount Medicine Cabinet in Satin Anodized Aluminum

26-1/8 in. Surface Mount and Recessed Mount Medicine Cabinet in Satin Anodized Aluminum

Part #RRC2026D4FB1

Item #4203387

EACH

4 in. Ductile Iron EPDM Locking Lever Handle Butterfly Valve

NIBCO LD-3000 Series

4 in. Ductile Iron EPDM Locking Lever Handle Butterfly Valve

Part #NLD30003P

Item #4269968

EACH

You May Also Like

1–6 of 18 items

Pre-Rinse, Wall Mount Base, 8" Centers, 6" Wall Bracket, 12" Add-On Faucet

T&S Brass Equip

Pre-Rinse, Wall Mount Base, 8" Centers, 6" Wall Bracket, 12" Add-On Faucet

Part #T5PR8W12

Item #3175958

EACH

Turret w/ (2) Gas Valves @ 90 Deg & 3/8" NPT Inlet

Turret w/ (2) Gas Valves @ 90 Deg & 3/8" NPT Inlet

Part #TBL43000

Item #866846

EACH

Double Pantry Base Faucet, Wall Mount, 8" Centers, Less Nozzle

Double Pantry Base Faucet, Wall Mount, 8" Centers, Less Nozzle

Part #TB0330LN

Item #869648

EACH

Double Pantry Fct, Wall Mt, Ceramas w/ Check Valves, Adjustable Centers, 14" Swing Nozzle

Double Pantry Fct, Wall Mt, Ceramas w/ Check Valves, Adjustable Centers, 14" Swing Nozzle

Part #TB0236CR063X

Item #7616255

EACH

Workboard Faucet, Deck Mount, 4" Centers, 133X Swivel Gooseneck, Lever Handles

Workboard Faucet, Deck Mount, 4" Centers, 133X Swivel Gooseneck, Lever Handles

Part #TB1141

Item #864757

EACH

Concealed Widespread Faucet, 8" Centers, 133XP-F15 Swivel Gooseneck, 1.5 GPM Flow Control

Concealed Widespread Faucet, 8" Centers, 133XP-F15 Swivel Gooseneck, 1.5 GPM Flow Control

Part #TB-2866-05FC15

Item #7803392

EACH

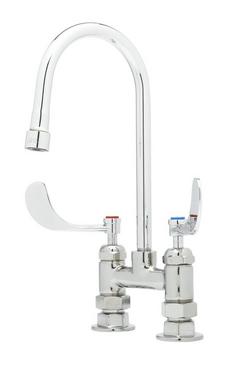

4" Deck Mount Faucet w/ 0.5 GPM Non-Aerated VR Outlet Device, B-WH4 Handles, Ceramas
