BrassCraft

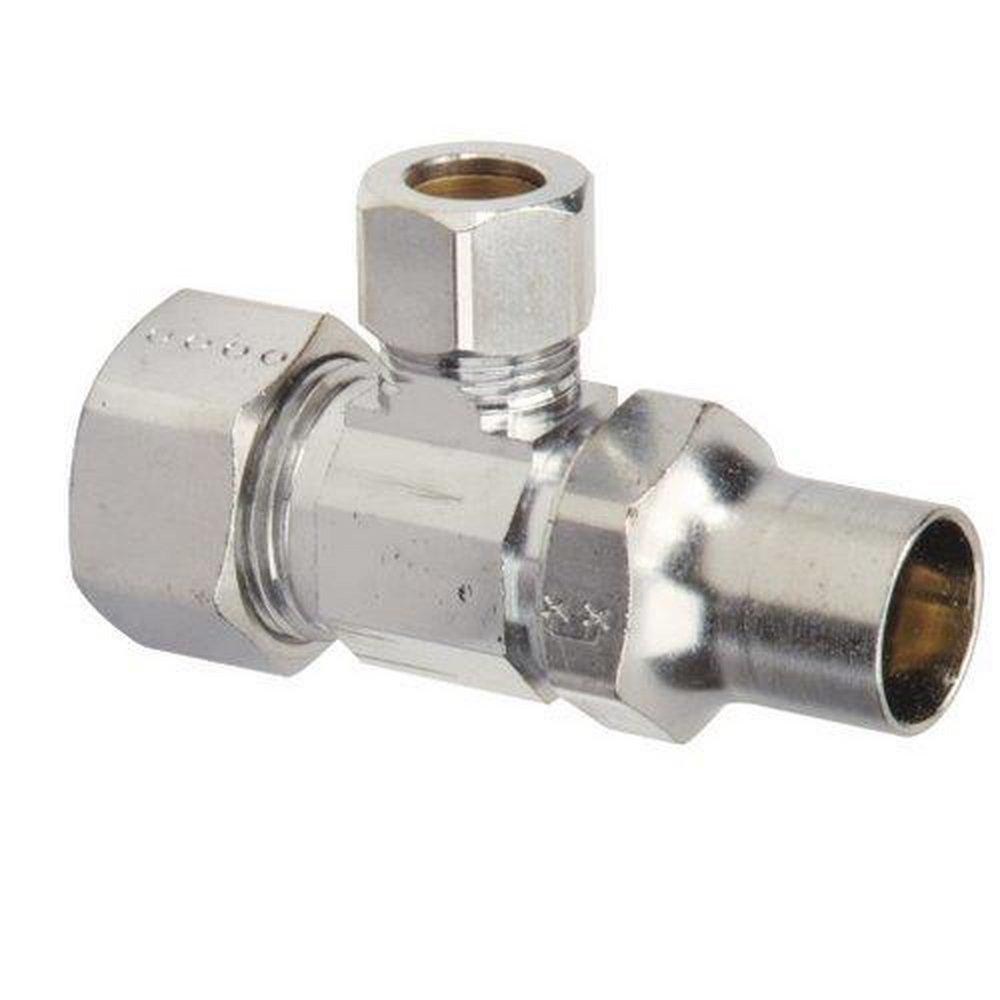

BrassCraft Chrome Plated Compression x OD Compression Loose Key Handle Angle Supply Stop Valve in Chrome Plated

BrassCraft

Fast #
Part #BSSCR19XC
Item #3869466
Manufacturer Part #SSCR19X C

$16.27

EACH

Valve Size: 1/2 in x 3/8 in

Out of Stock

Pick Up: Not available
Shipping: Not available

Frequently Purchased Together

Product Details

Machined, one-piece body construction for strength, durability and long-lasting performance
1/2 in. Nom Comp x 3/8 in. OD Comp
Compatible with copper or PEX pipe (PEX installations require a stainless steel tube insert, not included)
For use in potable water distribution systems. Not intended for recirculating water systems that produce continuous use temperatures above 115°F. For those applications, use our KT™ series ball stops.
Lockshield feature helps protect against tampering and accidental activation; includes loose key
Features a stuffing box
Contractor pack includes 5 individually tray valves

Lead Law Compliant

Documents

INSTALLATION

Specifications

ASME:: ASME A112.18.1

CSA Certified:: CSA B125.1

Collection:: SSCR19 Series

Color Finish Category:: Chromes

Color Finish Name:: Chrome Plated

End Connection 1:: Compression

End Connection 2:: OD Compression

End Connections:: Compression x OD Compression

Handle Material:: Zinc Die Cast

Handle Type:: Loose Key

Height:: 1-1/50 in

IAPMO Listed:: Yes

Lead Law Compliance Level:: Lead Law Compliant and Certified

Lead Law Compliant:: Yes

Length:: 2-14/25 in

Material:: Brass

Maximum Temperature:: 140

Minimum Temperature:: 40

NSF:: NSF 372

NSF Certified:: Yes

Origin:: Domestic

Pressure - High:: 125

Recommended Valve Application:: Potable Water, Commercial, Residential

Temperature Range:: 40 to 140 Deg F

UL Listed:: No

Valve Body Material:: Brass

Valve Body Style:: 1 piece

Valve Operator:: Multi-Turn Handle

Valve Size:: 1/2 in x 3/8 in

Valve Type:: Angle Supply Stop Valve

Weight:: 0.2835 lb

Width:: 2-1/4 in
